KBPC3506FP | Diotec Semiconductor

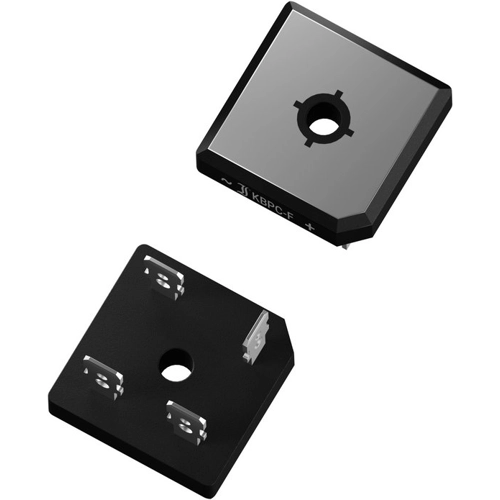

Diotec Semiconductor bridge rectifier, 420 V, 600 V (RRM), 35 A, flat bridge, KBPC3506FP
Unit Price (€ / pc.)
2.0111 € *
Available: 70 pcs.
Total Price:
2.01 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0111 €
10 pcs.
1.8088 €
50 pcs.
1.6065 €
100 pcs.
1.4637 €
240 pcs.
1.3090 €
*incl. VAT plus shipping costs
Subject to prior sale
Bridge rectifier, KBPC3506FP, DIOTEC
Features
- Four diodes in bridge configuration
- Fast-on terminals
- Plastic case with isolated aluminium baseplate
- UL recognized
- Compliant to RoHS, REACH and conflict minerals
Applications
- 50/60 Hz mains rectification
- Power supplies
- Commercial grade
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Assembly | screw mounting | |
| Enclosure | flat bridge | |
| Input voltage | 420 V | |
| Rated current | 35 A | |
| Voltage V RRM (peak reverse voltage) | 600 V | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Original Packaging | Bulk with 240 pieces |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
