KBPC2502F | Diotec Semiconductor

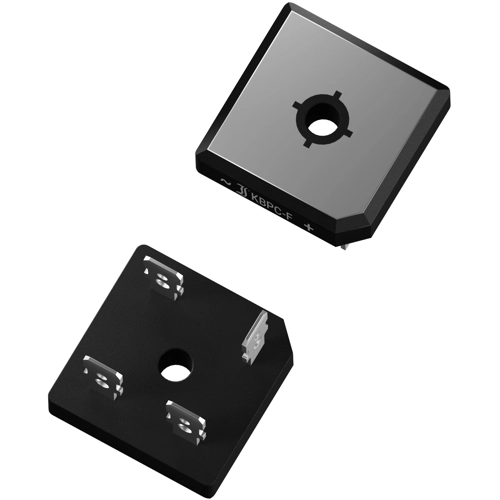

Diotec Semiconductor bridge rectifier, 140 V, 200 V (RRM), 25 A, flat bridge, KBPC2502F
Unit Price (€ / pc.)
3.4153 € *
Available: 193 pcs.
Available in 10 days: 3,840 pcs. - if ordered today
Total Price:
3.42 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4153 €
10 pcs.
3.0345 €
100 pcs.
2.7132 €
240 pcs.
2.4752 €
1000 pcs.
2.2729 €
*incl. VAT plus shipping costs
Subject to prior sale
Single Phase Diode Rectifier, KBPC2502F, DIOTEC
Features
- Four diodes in bridge configuration
- UL regognized
- Fast-on terminals
- Plasic case with isolated aluminium baseplate
Applications
- 50/60 Hz Mains Rectification
- Power Supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Assembly | screw mounting | |
| Enclosure | flat bridge | |
| Input voltage | 140 V | |
| Rated current | 25 A | |
| Voltage V RRM (peak reverse voltage) | 200 V | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
