ABS10 | Diotec Semiconductor

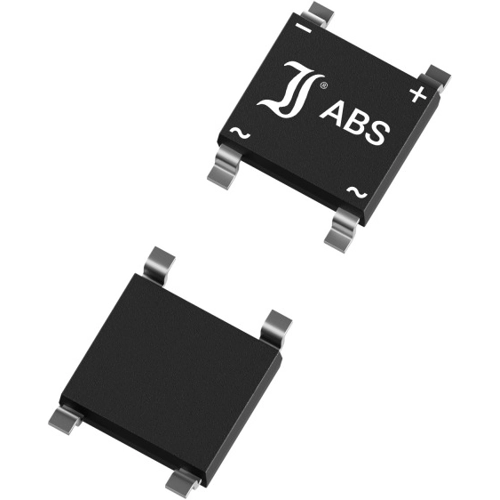

Diotec Semiconductor SMD bridge rectifier, 700 V, 1 kV (RRM), 0.8 A, SO-DIL, ABS10
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1499 € *
Available: 4,890 pcs.
Available in 4 Days: 330,000 pcs. - if ordered today
Total Price:
1.50 € *
Price list
Quantity
Price per unit*
10 pcs.
0.1499 €
100 pcs.
0.0940 €
250 pcs.
0.0559 €
1000 pcs.
0.0381 €
5000 pcs.
0.0298 €
*incl. VAT plus shipping costs
Subject to prior sale
Bridge rectifier, ABS10, DIOTEC
Features
- 4 mm pitch for high creepage and clearance
Applications
- 50/60 Hz Mains Rectification
- Power Supplies
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | 1-phase | |
| Assembly | SMD | |
| Enclosure | SO-DIL | |
| Input voltage | 700 V | |
| Rated current | 0.8 A | |
| Voltage V RRM (peak reverse voltage) | 1 kV | |
| min. operating temperature | -50 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 5,000 pieces |
| Country of origin | CN |
| Customs tariff number | 85411000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
