BAS70-05-7-F | Diodes
AF Schottky diode, 70 V, 70 mA, SOT23

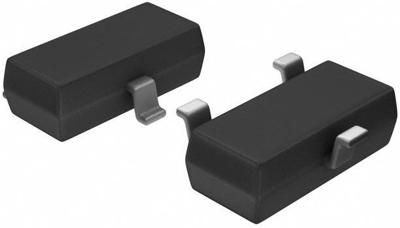

Images may differ
Unit Price (€ / pc.)
0.1154 € *
Available: 2,341 pcs.
Leadtime: 8 Weeks **
Total Price:
11.54 € *
Quantity
Price per unit*
100 pcs.
0.1154 €
300 pcs.
0.0821 €
1000 pcs.
0.0678 €
3000 pcs.
0.0583 €
10000 pcs.
0.0512 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
AF Schottky diodes.
Technical attributes (type, voltage, current, package manufacturer): BAS70-05, 70 V, 70 mA, SOT23, Diodes
Technical specifications
| Number of diodes | 2 | |
| Version | schottky rectifier diode | |
| Design | SMD | |
| Forward Current | 70 mA | |
| Enclosure | SOT-23 | |
| Capacity | 2 pF | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -65 °C | |
| Assembly | SMD | |
| Voltage V RRM (peak reverse voltage) | 70 V | |
| Junction temperature (max.) | 125 °C | |
| Junction temperature (min.) | -55 °C | |
| Surge blocking voltage V RMS | 49 V |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85411000 |
| Original Packaging | Reel with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
