ZXMN3A01FTA | Diodes

Name: DIODES SMD MOSFET NFET 30V 2A 120mΩ 150°C TO-236 ZXMN3A01FTA
Brand: Diodes
SKU: 33S2861
Price: 0.43 EUR
Availability: InStock

DIODES SMD MOSFET NFET 30V 2A 120mΩ 150°C TO-236 ZXMN3A01FTA

Order No.: 33S2861

MPN:

ZXMN3A01FTA

Series: ZXMN

EAN: 4099879034564

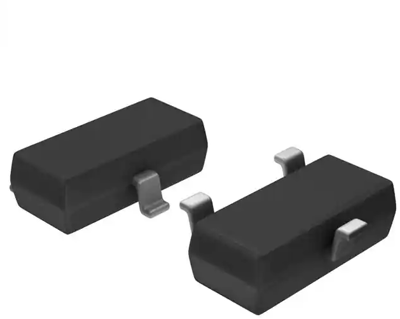

Images may differ

Key Specification:

Version N channel

max. Voltage 30 V

Max. current 2 A

drain-source on resistance RDS (on) max @VGS=10V 120 mΩ

Show 4 variants

Technical specifications Download Datasheet

Unit Price (€ / pc.)

0.4284 € *

Available: 5,945 pcs.

Leadtime: 10 Weeks **

Total Price:

4.28 € *

Quantity

Price per unit*

10 pcs.

0.4284 €

50 pcs.

0.3689 €

250 pcs.

0.3213 €

3000 pcs.

0.2808 €

6000 pcs.

0.2523 €

*incl. VAT plus shipping costs

**Subject to prior sale

Add to comparison list Print

Description

MOSFET, ZXMN3A01FTA, Diodes

This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Features

Low On-Resistance
Fast switching speed
Low threshold
Low gate drive

Technical specifications

	Version	N channel
	drain-source on resistance RDS (on) max @VGS=10V	120 mΩ
	Gate Charge Qg @10V (nC)	3.9x10<sup>-9</sup> C
	Enclosure	TO-236
	max. Voltage	30 V
	Max. current	2 A
	max. operating temperature	150 °C
	min. operating temperature	-55 °C
	Assembly	SMD
