2N7002E-7-F | Diodes

Name: Diodes N channel MOSFET, 60 V, 300 mA, TO-236, 2N7002E-7-F
Brand: Diodes
SKU: 34S3271
Price: 0.08 EUR
Availability: InStock

Diodes N channel MOSFET, 60 V, 300 mA, TO-236, 2N7002E-7-F

Order No.: 34S3271

EAN: 4099879034656

MPN:

2N7002E-7-F

Series: 2N7

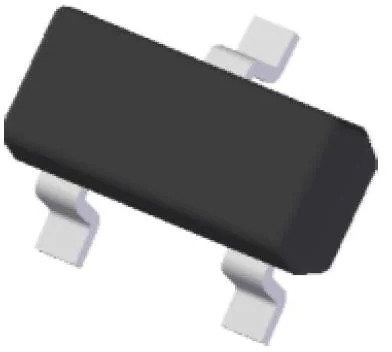

Image may differ

Key Specification:

Version N channel

max. Voltage 60 V

Max. current 300 mA

drain-source on resistance RDS (on) max @VGS=10V 3 Ω

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0833 € *

Available: 35,900 pcs.

Next delivery: 18,000 pcs. on 2024-09-13

Leadtime: 1 Week **

Total Price:

8.33 € *

Price list

Quantity

Price per unit*

100 pcs.

0.0833 €

300 pcs.

0.0607 €

1000 pcs.

0.0500 €

3000 pcs.

0.0428 €

10000 pcs.

0.0381 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

N-Channel MOSFETs Typ Diodes 2N7000.

Mit niedrigem RDS(ON), niedrigem Schwellwert, geringe Eingangskapazität, schnelle Schaltgeschwindigkeit, AEC-Q101 qualifiziert; Gehäuse: SOT23, Betriebstemperatur: –55 bis +150 °C. Tabellenangaben: Typ, Spannung (VDSS), Strom (ID), Widerstand RDS(ON).

Type: 2N7002E-7-F, 60 V, 300 mA, 3,0 Ohm

Technical specifications

	Version	N channel
	drain-source on resistance RDS (on) max @VGS=10V	3 Ω
	Gate Charge Qg @10V (nC)	2.2x10<sup>-10</sup> C
	Enclosure	TO-236
	max. Voltage	60 V
	Max. current	300 mA
	max. operating temperature	150 °C
	min. operating temperature	-55 °C
	Assembly	SMD
	Power loss	370 mW
