ZTX757 | Diodes

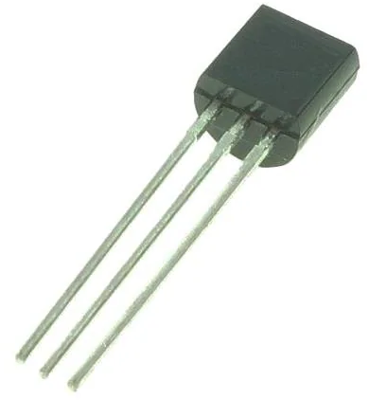

Bipolar junction transistor, PNP, -0.5 A, -300 V, THT, TO-92, ZTX757
Unit Price (€ / pc.)
0.4284 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
0.43 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4284 €
50 pcs.
0.3927 €
250 pcs.
0.3689 €
*incl. VAT plus shipping costs
Subject to prior sale
PNP transistor, ZTX757, DIODES
PNP silicon planar medium power high voltage transistor, E-Line.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Collector current | -0.5 A | |
| Transit frequency fTmin | 30 MHz | |
| Enclosure | TO-92 | |
| max.voltage between collector and emitter Vceo | -300 V | |
| max.voltage between collector and base Vcbo | -300 V | |
| Min DC gain | 40 mA | |
| Power dissipation | 1 W | |
| max. operating temperature | 200 °C | |
| min. operating temperature | -55 °C | |
| Version | PNP | |
| Assembly | THT | |
| Saturation voltage | -500 mV |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 4,000 pieces |
| Country of origin | QU |
| Customs tariff number | 85419000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
| RoHS conform | Yes |
