ZTX753 | Diodes

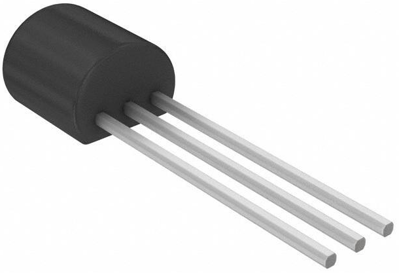

Bipolar junction transistor, PNP, -2 A, -100 V, THT, e-line, ZTX753
Unit Price (€ / pc.)
0.9520 € *
Available: 2,165 pcs.
Next delivery: 1,500 pcs. on 2024-07-08
Leadtime: 1 Week **
Total Price:
0.95 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9520 €
10 pcs.
0.6783 €
100 pcs.
0.5831 €
500 pcs.
0.5117 €
1000 pcs.
0.4641 €
*incl. VAT plus shipping costs
**Subject to prior sale
PNP transistor, ZTX753, DIODES
PNP silicon planar medium power transistor, E-Line.
Technical specifications
| Version | PNP | |
| Enclosure | e-line | |
| max. operating temperature | 200 °C | |
| max.voltage between collector and base Vcbo | -120 V | |
| max.voltage between collector and emitter Vceo | -100 V | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Saturation voltage | -500 mV | |
| Transit frequency fTmin | 100 MHz | |
| Power dissipation | 1 W | |
| Collector current | -2 A | |
| Max DC amplification | 140 mA | |
| Min DC gain | 100 mA |
Download
Logistics
| Country of origin | QU |
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
| Original Packaging | Bulk with 4,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
