F/DGX12 | Digisound
Signal transmitter, 240 Ω, 85 dB, 12 VDC, 40 mA, black
Order No.: 36M652
EAN: 4099891542221
MPN:
F/DGX12
Unit Price (€ / pc.)
1.6184 € *
Available: 459 pcs.
Leadtime: 23 Weeks **
Total Price:
16.18 € *
Price list
Quantity
Price per unit*
10 pcs.
1.6184 €
50 pcs.
1.4280 €
250 pcs.
1.2376 €
1000 pcs.
1.0829 €
2500 pcs.
0.9877 €
*incl. VAT plus shipping costs
**Subject to prior sale

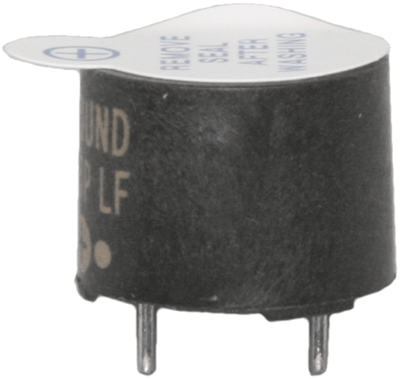

Buzzers, type Digisound F/DGX-.

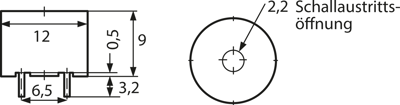

Compact design, no electronic circuit, washable, with clearly audible penetrating sound; Sound pressure level: min. 85 dB/ 0.1m. Current consumption: max. 40 mA. Frequency: 2.4 kHz. Operating temperatures: –40 to +85 °C. Dimensions: D 12, H 9.0 mm. Grid: 6.5 mm. Weight: 2.0 g.
Technical attributes (type, operating voltage, coil impedance): F/DGX-12P, 12 V (7.0 to 16 V), 240 ohm
Technical specifications
| Version | signal transmitter | |
| Colour | black | |
| Impedance | 240 Ω | |
| Rated current | 40 mA | |
| Resonance frequency | 2400 Hz | |
| Sound pressure level | 85 db | |
| Voltage | 12 VDC |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85318040 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead titanium zirconium oxide |
