F/DGX05P | Digisound

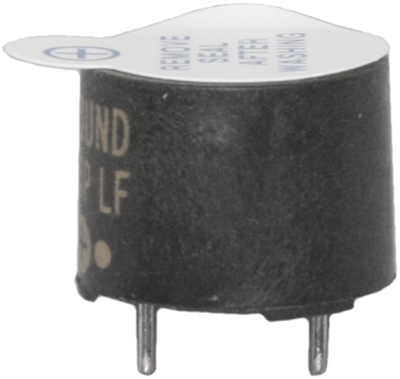

Signal transmitter, 80 Ω, 85 dB, 6 VDC, 40 mA, black, F/DGX05P
Order No.: 36M650
EAN: 4099891542214
MPN:
F/DGX05P
Unit Price (€ / pc.)
1.5113 € *
Available: 1 pcs.
Next delivery: 2,424 pcs. on 2025-08-28
Total Price:
1.51 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5113 €
50 pcs.
1.3328 €
250 pcs.
1.1543 €
1000 pcs.
1.0115 €
2500 pcs.
0.9163 €
*incl. VAT plus shipping costs
Subject to prior sale
Buzzers, type Digisound F/DGX-.

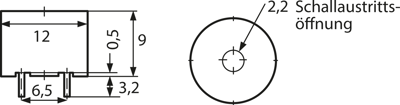

Compact design, no electronic circuit, washable, with clearly audible penetrating sound; Sound pressure level: min. 85 dB/ 0.1m. Current consumption: max. 40 mA. Frequency: 2.4 kHz. Operating temperatures: –40 to +85 °C. Dimensions: D 12, H 9.0 mm. Grid: 6.5 mm. Weight: 2.0 g.
Technical attributes (type, operating voltage, coil impedance): F/DGX-05P, 6.0 V (4.0 to 8.0 V), 80 ohm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Impedance | 80 Ω | |
| Resonance frequency | 2400 Hz | |
| Voltage | 6 VDC | |
| Sound pressure level | 85 db | |
| Version | signal transmitter | |
| Colour | black | |
| Rated current | 40 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318070 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, Lead titanium zirconium oxide |
| SVHC free | No |
| RoHS conform | Yes |
