ZPF000000000000435 | DEUTSCH
Receptacle, 0.25-0.5 mm², AWG 24-20, crimp connection, ZPF000000000000435
Order No.: 37P5020
EAN: 4099889649529
MPN:
ZPF000000000000435
006-1189-20
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
18.3855 € *
Standard delivery time from the manufacturer is: 8 Weeks

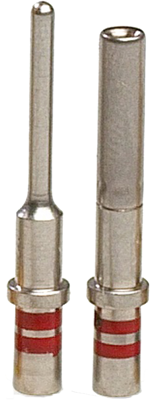

Socket contact, ZPF000000000000435, Deutsch
Barrel Type: Crimp, Connector System: Cable-to-Cable, Sealable: Yes, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 115 VAC, Operating Voltage: 115 VDC, Contact Type: Socket, Contact Retention Within Housing: With, Contact Size: Size 20, Contact Base Material: Alumel, Contact Current Rating (Max): 7.5 A, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Spring, Wire Size: 24 – 20 AWG, Wire Size: 0.5 – 0.25 mm², Operating Temperature Range: -65 – 200 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| Cable cross-section | 0.25-0.5 mm² | |
| AWG cross-section | AWG 24-20 | |
| Contact connection | crimp connection | |
| Contact material | alumel |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
