DTM06-4S-E004 | DEUTSCH

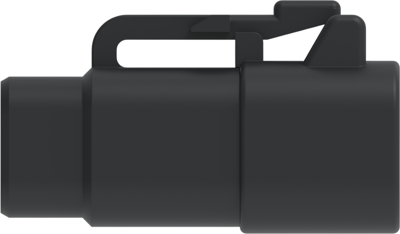

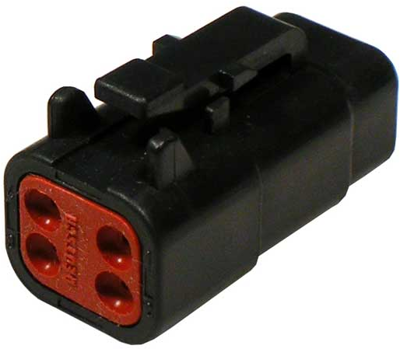

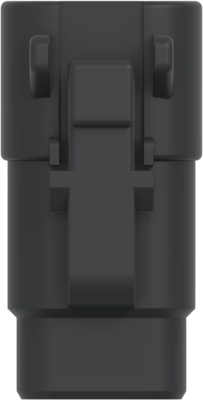

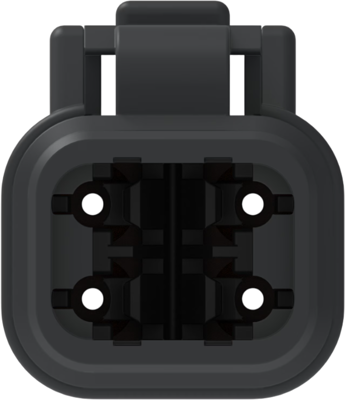

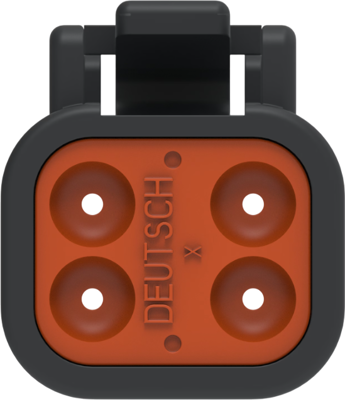

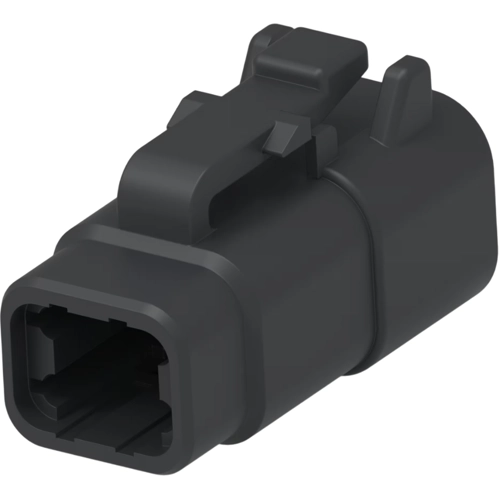

Plug, unequipped, 4 pole, straight, 2 rows, black, DTM06-4S-E004
Unit Price (€ / pc.)
5.3312 € *
Standard delivery time from the manufacturer is: On Request
Housing terminals, DTM06-4S-E004, DEUTSCH
Housing for female terminals, Wire-to-wire, 4 Position, 4.19 mm Centerline, Sealable, Black, Wire & cable, Power & signal, Hybrid
Technical specifications
| Version | straight | |
| Colour | black | |
| Type of locking | Yes | |
| Rated voltage | 250 V | |
| Pin number | 4 pole | |
| Connection | crimp connection | |
| Grid | 4.19 mm | |
| Number of rows | 2 | |
| Rated current | 7.5 A | |
| Contact type | plug | |
| Additional parts | unequipped |
Download
Logistics
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane |
