DTM06-3S-E004 | DEUTSCH

Plug, unequipped, 3 pole, straight, 1 row, black, DTM06-3S-E004

Order No.: 36P0043
EAN: 4099889892024
MPN:
DTM06-3S-E004
Series: DTM

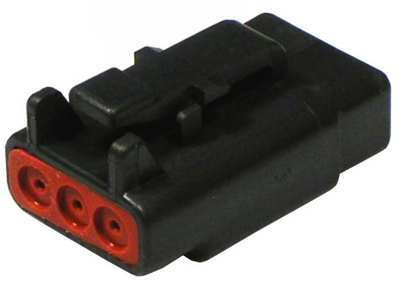

DTM06-3S-E004 DEUTSCH Automotive Power Connectors Image 1

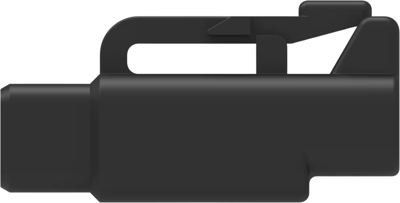

DTM06-3S-E004 DEUTSCH Automotive Power Connectors Image 2

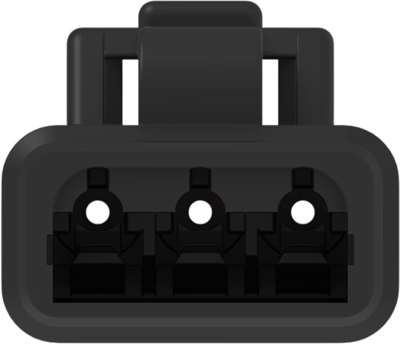

DTM06-3S-E004 DEUTSCH Automotive Power Connectors Image 3

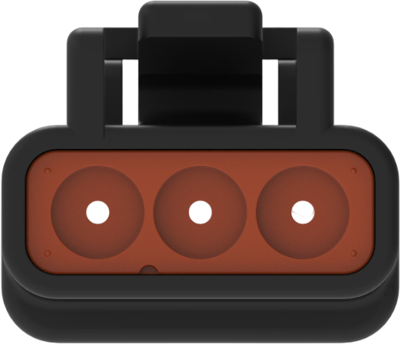

DTM06-3S-E004 DEUTSCH Automotive Power Connectors Image 4

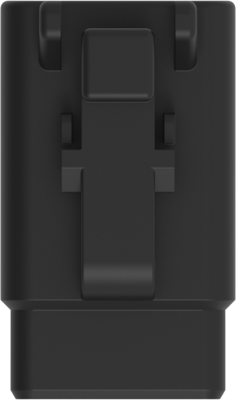

DTM06-3S-E004 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.2614 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
5,045.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
1.2614 €

Housing terminals, DTM06-3S-E004, DEUTSCH

Housing for female terminals, Wire-to-wire, 3 Position, 4.19 mm Centerline, Sealable, Black, Wire & cable, Power & signal, Hybrid

Technical specifications
Filter Property Value
Grid 4.19 mm
Contact type plug
Connection crimp connection
Rated voltage 250 V
Number of rows 1
Type of locking Yes
Pin number 3 pole
Additional parts unequipped
Colour black
Version straight
Rated current 7.5 A
Logistics
Property Value
Country of origin US
Customs tariff number 85389099
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
RoHS conform Yes
SVHC free No
