RSF44Y100RF | Cynergy3
RSF44Y100RF, float switch
Active
Product by Cynergy3 at Bürklin Elektronik
Horizontal float switches made of plastic, type Cynergy3 RSF40.
Contact type: configurable as NO or NC contact, for internal installation. Liquid viscosity: min. 0.85. Breaking capacity: max. 25 VA. Switching voltage: max. 240 VAC/120 VDC. Switching current: max. 0.6 A. Termination: PVC cable, 1.0 m.
With opaque housing made of polypropylene, type RSF44.

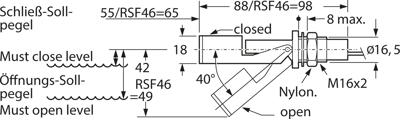

Operating temperatures; –20 to +100 °C; Target level for closing contact: 8.0 mm. Target level for opening contact: 20 mm. Certifications: WRAS.
Type: RSF44Y100RF, float switch
| Version | Float switch | |
| Flow range | 0.85 | |
| diameter | 16.5 mm | |
| Shell Material | polypropylene | |
| Medium | Liquids | |
| Switching Voltage (AC) | 240 V | |
| Switching Voltage (DC) | 120 V |
| Country of origin | GB |
| Customs tariff number | 90261089 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 6/8/11 |
| SVHC free | Yes |
