MP240D4 | CRYDOM
Solid state relay, 3-32 VDC, zero voltage switching, 24-280 VAC, 4 A, PCB mounting, MP240D4
Unit Price (€ / pc.)
53.7404 € *
Available in 5 Days: 178 pcs. - if ordered today
Total Price:
53.74 € *
Price list
Quantity
Price per unit*
1 pcs.
53.7404 €
5 pcs.
50.9677 €
10 pcs.
47.6714 €
25 pcs.
43.4707 €
*incl. VAT plus shipping costs
Subject to prior sale

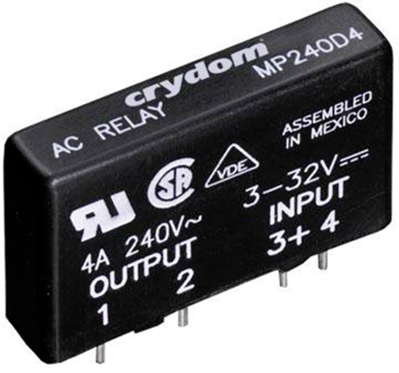

Solid state relay, MP240D4, CRYDOM
For PCB connection, with DC input and triac output; Operating voltage: 24 to 280 VAC. Frequency: 47 to 63 Hz. Surge current (16.6 ms): max. 90 A. Dielectric strength: 4000 Vrms. Insulation resistance: min. 10 Gohm on 500 VDC. Input impedance: 1.5 kohm. Capacitance input/output: max. 8.0 pF. Voltage drop: max. 1.6 V. Voltage rate of rise: min. 200 V/µs. Ambient temperatures: -40 to +80 °C. Dimensions: 43.1 x 10.2 x 24.4 mm. Certifications: UL, CSA, VDE. Table index, type, load current, control voltage.
Type: MP240D4, 4.0 A, 3.0 to 32 VDC.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 4 A | |
| Voltage | 24-280 VAC | |
| Control Voltage | 3-32 VDC | |
| Switching Mode | zero voltage switching | |
| Assembly | PCB mounting | |
| LED display | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
