DRA1-CMX60D5 | CRYDOM
Solid state relay, 60 VDC, instantaneous switching, 3-10 VDC, 5 A, DIN rail, DRA1-CMX60D5

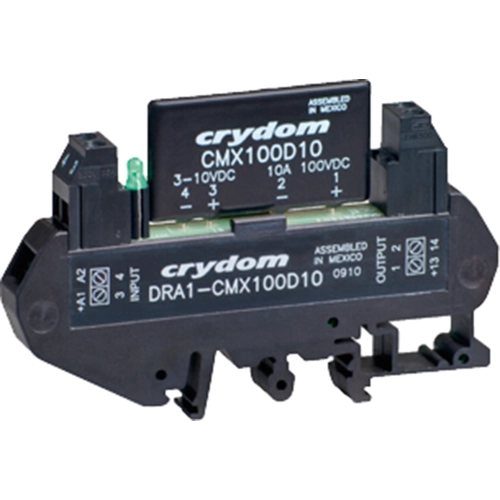

Solid state relays, type Crydom DRA.
For DIN rail mounting, with screw terminals and relay socket; SSR function: SPST-NO.
Single-phase with DC voltage output and status display.
Input current: 15 mA. Insulation voltage: 2500 VRMS. Operating temperatures: –30 to +80 °C. Dimensions: W 10.03, H 89.6, D 60.97 mm.
Technical attributes (type, output voltage, output current, control voltage): DRA1-CMX60D5, 1.0 to 60 VDC, 0 to 5.0 A, 3.0 to 10 VDC
LED display | Yes | |
Assembly | DIN rail | |
Rated current | 5 A | |
Switching Mode | instantaneous switching | |
Voltage | 3-10 VDC | |
Control Voltage | 60 VDC |
Country of origin | MX |
Customs tariff number | 85364190 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
