D4D07 | CRYDOM
Solid state relay, 400 VDC, 3.5-32 VDC, 7 A, PCB mounting, D4D07
Unit Price (€ / pc.)
129.4839 € *
Available in 5 Days: 15 pcs. - if ordered today
Total Price:
129.48 € *
Price list
Quantity
Price per unit*
1 pcs.
129.4839 €
2 pcs.
123.4982 €
5 pcs.
118.0599 €
10 pcs.
109.9679 €
*incl. VAT plus shipping costs
Subject to prior sale

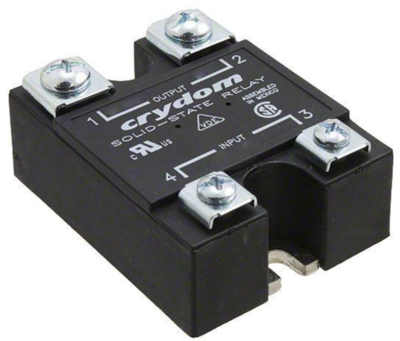

Solid state relay, D4D07, CRYDOM
Solid state relay with improved SEMS screw and washer. It features a redesigned housing with anti-rotation barriers.
Features
- Mosfet output
- UL Approved, CE Compliant to EN60950-1
- Epoxy free design
- EMC compliant to Level 3
- DC Control
Technical specifications
| Filter | Property | Value |
|---|---|---|
| LED display | No | |
| Voltage V RRM (peak reverse voltage) | 800 V | |
| Rated current | 7 A | |
| Control Voltage | 400 VDC | |
| Voltage | 3.5-32 VDC | |
| Assembly | PCB mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
