D1D12 | CRYDOM
Solid state relay, 3.5-32 VDC, 1-100 VDC, 12 A, PCB mounting, D1D12
Unit Price (€ / pc.)
98.3297 € *
Available in 5 Days: 90 pcs. - if ordered today
Total Price:
98.33 € *
Price list
Quantity
Price per unit*
1 pcs.
98.3297 €
2 pcs.
93.7958 €
5 pcs.
89.6546 €
10 pcs.
83.5142 €
*incl. VAT plus shipping costs
Subject to prior sale

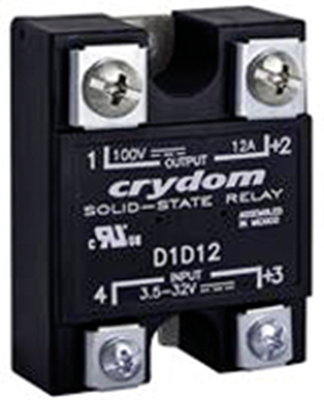

Solid state relay, D1D12, CRYDOM
With MOSFET output, this Panel Mount DC Solid State Relay offers reliable fast switching of DC loads through low On-State resistance. Power ratings for this DC output SSR range up to 100 Amps at 100 VDC and 10 Amps at 500 VDC.
Features
- Improved SEMS screw and washer
- Redesigned housing with anti-rotation barriers
- DC control
- Epoxy free design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 12 A | |
| Voltage | 1-100 VDC | |
| Control Voltage | 3.5-32 VDC | |
| Assembly | PCB mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
