84134910 | CRYDOM
Solid state relay, 3-32 VDC, zero voltage switching, 25 A, PCB mounting, 84134910
As a private customer, you can buy this item as soon as we have it back in stock.

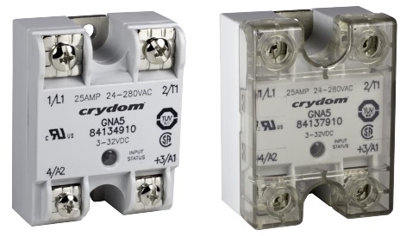

Solid state relay, 84134910, CRYDOM
Solid state relay with improved SEMS screw and washer and redesigned housing with anti-rotation barriers.
Features
- LED Input status indicator
- UL Approved, CE Compliant to EN60950-1
- EMC Compliant to level 3
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | PCB mounting | |
| Rated current | 25 A | |
| Control Voltage | 3-32 VDC | |
| LED display | Yes | |
| Switching Mode | zero voltage switching |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
