3017W2SCM99A10X | CONEC

D-Sub socket, 19 pole, 17W2, partially equipped, straight, solder cup, 3017W2SCM99A10X

Order No.: 55F5620
EAN: 4099889807462
MPN:
3017W2SCM99A10X

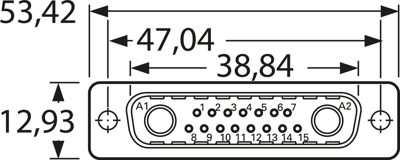

3017W2SCM99A10X CONEC D-Sub Connectors Image 1

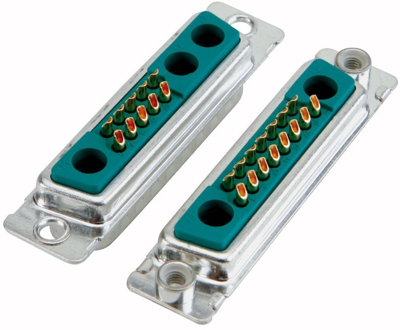

3017W2SCM99A10X CONEC D-Sub Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.8175 € *
Available: 142 pcs.
Next delivery: 100 pcs. on 2025-07-14
Leadtime: 10 Weeks **
Total Price:
9.82 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8175 €
10 pcs.
8.6394 €
50 pcs.
8.0563 €
150 pcs.
7.6874 €
*incl. VAT plus shipping costs
**Subject to prior sale

Combination Sub-D connector, type Conec 30.

Versatile connector for many applications, for signal, high-current and/or coax contacts, in 3 different housing sizes; Insulator: PBTP, GV. Housing: steel. Contact material: copper alloy. Contact surface: plated gold over nickel. Features of the signal contacts: maximum current : 5.0 A. Test voltage: 1000 V. Contact resistance per pair of contacts: max. 2.7 mohm. Insulation resistance: min. 5.0 Gohm. Contact resistance: max. 2.7 mohm. Operating voltage: 250 V. Operating temperatures: –55 °C to +125 °C. High-current and coax contacts are available on separate order.

Housings size 3, type 30.

For 5 special contacts (5W5), 4 special and 5 signal contacts (9W4) or 2 special and 15 signal contacts (17W2).

Type: 3017W2SCM99A10X, female connector 17W2

Technical specifications
Type of locking through hole
Pole image 17W2
Attachment (rear panel) through hole
Assembly straight
Contact connection solder cup
Pin number 19 pole
Version socket header
Additional parts partially equipped
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
