132C10049X | CONEC

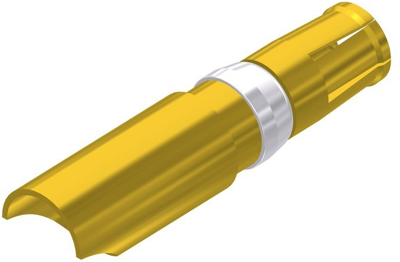

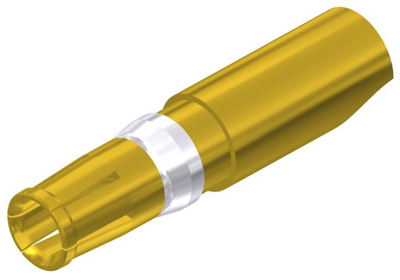

Receptacle, AWG 10-8, solder connection, gold-plated, 132C10049X
Order No.: 55F5650
EAN: 4099889660913
MPN:
132C10049X
Unit Price (€ / pc.)
4.0103 € *
Next delivery: 199 pcs. on 2026-08-21
Total Price:
4.01 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0103 €
10 pcs.
3.7009 €
50 pcs.
3.4391 €
100 pcs.
3.2130 €
*incl. VAT plus shipping costs
Subject to prior sale
Corresponding high current contact, type 13.
With solder terminals. Quality grade 1 (0.8 µ gold-plating, mating side); Current rating: 10, 20 or 40 A. Insulation resistance: min. 5.0 Gohm. Contact resistance: max. 1.0 mohm. Operating temperatures: –55 to +155 °C.
Type: 132C10049X, female contact, 40 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| AWG cross-section | AWG 10-8 | |
| Contact connection | solder connection | |
| Contact material | copper alloy | |
| Contact surface mating area | nickel-plated | |
| contact surface | gold-plated | |
| Contact surface Connection range | gold-plated | |
| Insulation diameter | 4.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Electrical equipment take-back |  |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
