132C10029X | CONEC

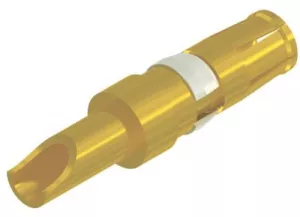

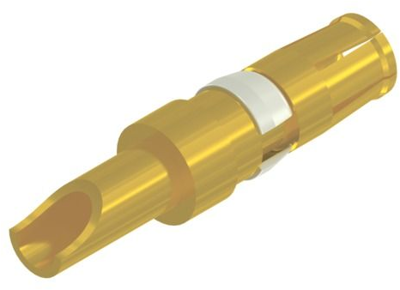

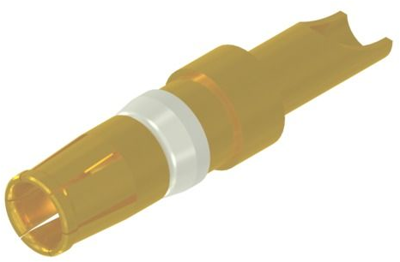

Receptacle, AWG 14-12, solder connection, gold-plated, 132C10029X
Order No.: 55F5648
EAN: 4099889660906
MPN:
132C10029X
Unit Price (€ / pc.)
2.1777 € *
Available: 355 pcs.
Total Price:
2.18 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1777 €
10 pcs.
2.0230 €
25 pcs.
1.8802 €
50 pcs.
1.7136 €
*incl. VAT plus shipping costs
Subject to prior sale
Corresponding high current contact, type 13.
With solder terminals. Quality grade 1 (0.8 µ gold-plating, mating side); Current rating: 10, 20 or 40 A. Insulation resistance: min. 5.0 Gohm. Contact resistance: max. 1.0 mohm. Operating temperatures: –55 to +155 °C.
Type: 132C10029X, female contact, 20 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 14-12 | |
| Contact surface mating area | nickel-plated | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Version | receptacle | |
| Contact material | copper alloy | |
| Insulation diameter | 2.7-3.63 mm | |
| Contact surface Connection range | gold-plated |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
