5790 9583 113 | COMUS
Solid state relay, 3-32 VDC, momentary switching, 48-480 VAC, 45 A, PCB mounting, 5790 9583 113
Unit Price (€ / pc.)
158.5913 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
158.59 € *
Price list
Quantity
Price per unit*
10 pcs.
158.5913 €
50 pcs.
150.6540 €
*incl. VAT plus shipping costs
**Subject to prior sale

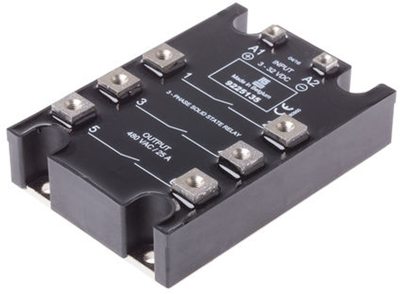

Solid-state 3-phase contactors, type Comus WG A3 12D.
For screw-on mounting, with screw terminals; Load current: 25 or 45 A. Load voltage range: 24 to 480 VAC or 48 to 480 VAC. Control voltage: 3.0 to 32 VDC. Control current: max. 25 mA. Peak reverse voltage: 1200 V. Leakage current max.: 10 mA RMS. Forward voltage: 1.6 V. Operating frequency: 47 to 63 Hz. Dielectric test voltage control/load circuit: 4.0 kV. Operating temperatures: –20 to +80 °C.
Momentary voltage response.
Load voltage range: 48 to 480 VAC.
Technical attributes (type, load current, response/ release time (max.)): WG A3 12D 45 R, 45 A, 0.1/11 ms
Technical specifications
| Assembly | PCB mounting | |
| Rated current | 45 A | |
| Switching Mode | momentary switching | |
| Voltage V RRM (peak reverse voltage) | 1.2 kV | |
| Voltage | 48-480 VAC | |
| Control Voltage | 3-32 VDC |
Download
Logistics
| Country of origin | BE |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
