7523 1300 001 | COMUS

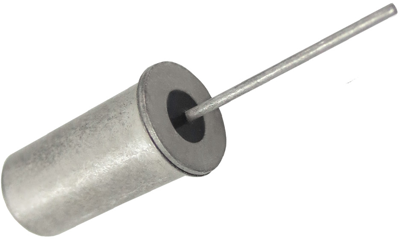

Tilt switch, 5 V, 7523 1300 001
Active
Product by COMUS at Bürklin Elektronik
Halogen-free tilt switch, type Comus CW1300
Motion or vibration sensor.
Termination: one-sided
Switching current: max. 0.25 A
Breaking capacity: max. 5.0/3.0 VA
Switching voltage: max. 60 VAC
Differential switching angle: 15 °
Contact resistance: max. 30 ohm
Operating temperatures: - 37 to +100 °C

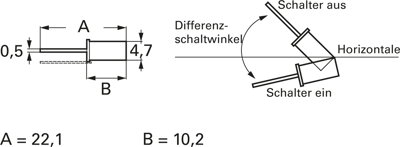

Size: A 22.1, B 10.2 mm
| Version | Tilt switch | |
| Voltage | 5 V |
| Country of origin | BE |
| Customs tariff number | 85365080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
