COMSET Semiconductors

BDW83D | COMSET Semiconductors

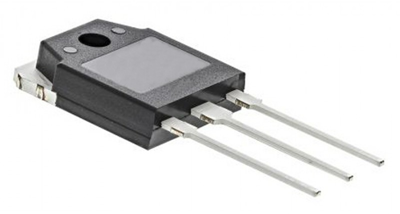

Bipolar junction transistor, NPN, 15 A, 120 V, THT, TO-3PN, BDW83D

Order No.:  15S5368
MPN:
BDW83D
EAN: 4099879028563
COMSET Semiconductors
default L
default S
Images may differ

Key Specification:

Assembly THT
Enclosure TO-3PN
Version NPN
Saturation voltage 2.5 V
Collector current 15 A
Show 2 variants
Technical specifications Download Datasheet
Unit Price (€ / pc.)
3.6414 € *
Available: 86 pcs.
Leadtime: 6 Weeks **
Total Price:
3.64 € *
Quantity
Price per unit*
1 pcs.
3.6414 €
25 pcs.
3.2011 €
100 pcs.
3.0345 €
250 pcs.
2.9155 €
1000 pcs.
2.7489 €
*incl. VAT plus shipping costs
**Subject to prior sale
Add to comparison list Print
Description
Technical specifications
Download
Logistics
Compliance
Variations
Description

Transistors series BDW.

Technical attributes (type, package, manufacturer): BDW83D, TO218, COMSET
Technical specifications
Version NPN
Enclosure TO-3PN
max. operating temperature 150 °C
max.voltage between collector and base Vcbo 120 V
max.voltage between collector and emitter Vceo 120 V
min. operating temperature -65 °C
Assembly THT
Rated current 15 A
Saturation voltage 2.5 V
Transit frequency fTmin 1 MHz
Power dissipation 150 W
Collector current 15 A
Show similar products (0)
Logistics
Country of origin CN
Customs tariff number 85412900
Original Packaging Bar with 25 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Power dissipation
Unit
Version
Collector current
Unit
Saturation voltage
Unit
Assembly
min. operating temperature
max. operating temperature
Rated current
Unit
Enclosure
Search results: 1 item in 2 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Power dissipation
Version
Collector current
Saturation voltage
Assembly
min. operating temperature
max. operating temperature
Rated current
Enclosure
Bipolar junction transistor, NPN, 15 A, 100 V, THT, TO-3PN, BDW83C
Bipolar junction transistor, NPN, 15 A, 100 V, THT, TO-3PN, BDW83C
Order No.:
 15S5366
Manufacturer:
 COMSET Semiconductors
Manufacturer SKU:
 BDW83C
Total Price: 3.47 € *
1 pcs.
3.4748 €
30 pcs.
3.0583 €
120 pcs.
2.8917 €
270 pcs.
2.7846 €
1020 pcs.
2.6299 €
Available: 186 pcs.
Leadtime: 6 Weeks **
150 W
NPN
15 A
2.5 V
THT
-65 °C
150 °C
15 A
TO-3PN
Bipolar junction transistor, NPN, 15 A, 120 V, THT, TO-3PN, BDW83D
Bipolar junction transistor, NPN, 15 A, 120 V, THT, TO-3PN, BDW83D
Order No.:
 15S5368
Manufacturer:
 COMSET Semiconductors
Manufacturer SKU:
 BDW83D
Total Price: 3.64 € *
1 pcs.
3.6414 €
25 pcs.
3.2011 €
100 pcs.
3.0345 €
250 pcs.
2.9155 €
1000 pcs.
2.7489 €
Available: 86 pcs.
Leadtime: 6 Weeks **
150 W
NPN
15 A
2.5 V
THT
-65 °C
150 °C
15 A
TO-3PN
