19500432 | CML
LED signal light, 230 V (AC), yellow, 10 mcd, Mounting Ø 8 mm, LED number: 1
Unit Price (€ / pc.)
12.7092 € *
Available: 3 pcs.
Leadtime: 5 Weeks **
Total Price:
12.71 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7092 €
10 pcs.
11.1741 €
50 pcs.
10.4244 €
150 pcs.
9.9603 €
500 pcs.
9.4486 €
*incl. VAT plus shipping costs
**Subject to prior sale

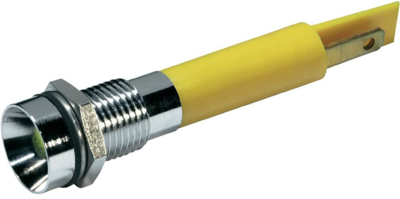

LED signal lamps, type CML 1950.
Panel-mount diameter: 8.0 mm. LED diameter: 5.0 mm, inner reflector made of high-gloss chrome-plated brass and protective sleeve. Connection: tab terminals 2.8 x 0.8 mm. Degree of protection (EN 60529): IP 67, at the front between the LED and housing, and between the housing and front panel if the included seal ring is used. Ambient temperatures: –20 to +60 °C.
Technical attributes (type, rated voltage, color, rated current, luminous intensity): 19500432, 230 VAC, yellow, 3.0 mA, 7.0 mcd
Technical specifications
| Connection | faston plug 2.8 x 0.8 mm | |
| Number of LEDs | 1 | |
| Diode Diameter | 5 mm | |
| Installation diameter | 8 mm | |
| Farbe der Beleuchtung | yellow | |
| Luminous intensity | 0.01 cd | |
| Assembly | central Mounting | |
| Rated voltage (AC) | 230 V | |
| Rated current | 3 mA |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
