19500430 | CML
Signal light, 230 V (AC), red, 22 mcd, Mounting Ø 8 mm, LED number: 1, 19500430
Unit Price (€ / pc.)
12.9472 € *
Available: 51 pcs.
Total Price:
12.95 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9472 €
10 pcs.
11.3883 €
50 pcs.
10.6148 €
150 pcs.
10.1388 €
500 pcs.
9.6271 €
*incl. VAT plus shipping costs
Subject to prior sale

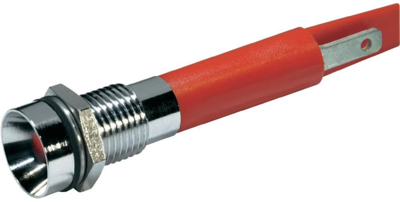

LED signal lamps, type CML 1950.
Panel-mount diameter: 8.0 mm. LED diameter: 5.0 mm, inner reflector made of high-gloss chrome-plated brass and protective sleeve. Connection: tab terminals 2.8 x 0.8 mm. Degree of protection (EN 60529): IP 67, at the front between the LED and housing, and between the housing and front panel if the included seal ring is used. Ambient temperatures: –20 to +60 °C.
Technical attributes (type, rated voltage, color, rated current, luminous intensity): 19500430, 230 VAC, red, 3.0 mA, 22 mcd
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Luminous intensity | 0.022 cd | |
| Connection | faston plug 2.8 x 0.8 mm | |
| Rated voltage (AC) | 230 V | |
| Assembly | central Mounting | |
| Number of LEDs | 1 | |
| Diode Diameter | 5 mm | |
| Farbe der Beleuchtung | red | |
| Installation diameter | 8 mm | |
| Rated current | 3 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
