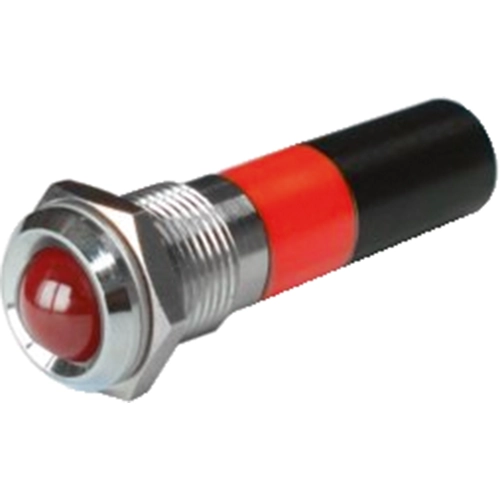

LED signal lamps, type CML 1935.
Panel-mount diameter: 14 mm. LED diameter: 10 mm, with high-gloss chrome plated brass reflector and protective sleeve. Connection: tab terminals 2.8 x 0.8 mm. Degree of protection (EN 60529): IP 67, at the front between the LED and housing, and between the housing and front panel if the included seal ring is used. Ambient temperatures: –20 to +60 °C. Certifications: VDE, UL.
Technical attributes (type, rated voltage, color, rated current, luminous intensity): 19350230, 230 VAC, red, 3.0 mA, 18 mcd
Connection | faston plug 2.8 x 0.8 mm | |
Number of LEDs | 1 | |
Diode Diameter | 10 mm | |
Installation diameter | 14 mm | |
Farbe der Beleuchtung | red | |
Luminous intensity | 0.02 cd | |
Assembly | central Mounting | |
Rated voltage (AC) | 230 V | |
Rated current | 3 mA |
Country of origin | CN |
Customs tariff number | 85414100 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
Substance description | Lead |
