19210351 | CML
LED signal light, 24 V (DC), green, 70 mcd, Mounting Ø 14 mm, pitch 7.2 mm, LED number: 1
Unit Price (€ / pc.)
8.0682 € *
Available: 0 pcs.
Next delivery: 42 pcs. on 2024-04-26
Leadtime: 5 Weeks **
Total Price:
8.07 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0682 €
10 pcs.
7.0924 €
50 pcs.
6.6164 €
150 pcs.
6.3189 €
500 pcs.
5.9976 €
*incl. VAT plus shipping costs
**Subject to prior sale

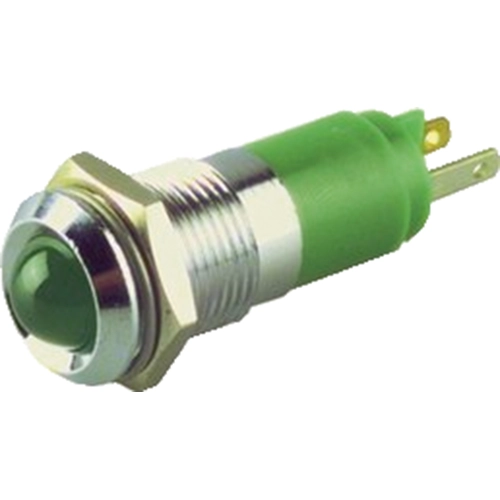

LED signal lamps, type CML 1921.
Panel-mount diameter: 14 mm. LED diameter: 10 mm, with high-gloss chrome plated brass reflector, series resistor. Connection: tab terminals 2.8 x 0.8 mm. Degree of protection (EN 60529): IP 67, at the front between the LED and housing, and between the housing and front panel if the included seal ring is used. Ambient temperatures: –20 to +60 °C.
Technical attributes (type, rated voltage, color, rated current, luminous intensity): 19210351, 24 VDC, green, 20 mA, 70 mcd
Technical specifications
| Connection | faston plug 2.8 x 0.8 mm | |
| Number of LEDs | 1 | |
| Diode Diameter | 10 mm | |
| Installation diameter | 14 mm | |
| Farbe der Beleuchtung | green | |
| Luminous intensity | 0.07 cd | |
| Assembly | central Mounting | |
| Rated voltage (DC) | 24 V | |
| Rated current | 20 mA | |
| Grid | 7.2 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85414100 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
