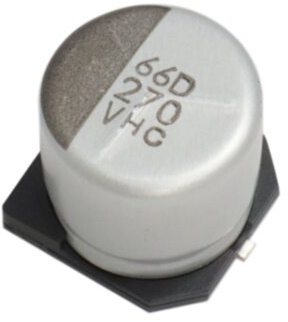

HHXC350ARA101MHA0G | Chemi-Con
Polymer hybrid aluminum electrolytic capacitor, SMD, 100 µF, 35 V, ±20 %, HHXC350ARA101MHA0G
Unit Price (€ / pc.)
1.4637 € *
Available: 50 pcs.
Total Price:
1.46 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4637 €
10 pcs.
0.9401 €
100 pcs.
0.7259 €
500 pcs.
0.5831 €
1000 pcs.
0.5236 €
*incl. VAT plus shipping costs
Subject to prior sale
Conductive polymer hybrid, HHXC350ARA101MHA0G, Chemi-Con
The HHXC350ARA101MHA0G is a conductive polymer hybrid aluminum electrolytic capacitor with high reliability and high voltage realized by hybrid electrolyte.
For high temperature and high reliability applications like automotive equipment, base station equipment, etc.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 35 V | |
| Capacity | 100 µF | |
| Design | SMD | |
| min. operating temperature | -55 °C | |
| diameter | 8 mm | |
| Tolerance | ±20 % | |
| Length | 10 mm | |
| ESR (Equivalent Series Resistance) | 27 mΩ | |
| max. operating temperature | 125 °C | |
| Ripple current | 1.6 A |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 500 pieces |
| Customs tariff number | 85322200 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
