CDIL

MPSA92 | CDIL

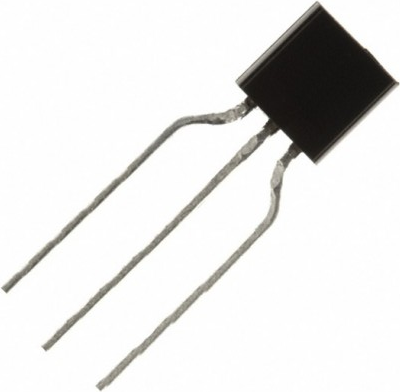

Bipolar junction transistor, PNP, 500 mA, 300 V, THT, TO-92, MPSA92

Order No.:  24S4947
MPN:
MPSA92
Series:  MPSA
EAN: 4099879029621
CDIL
default L
default S
Images may differ

Key Specification:

Assembly THT
Enclosure TO-92
Version PNP
Saturation voltage 900 mV
Collector current 500 mA
Show 2 variants
Technical specifications Download Datasheet
Unit Price (€ / pc.)
0.1404 € *
Available: 19 pcs.
Leadtime: 4 Weeks **
Total Price:
1.40 € *
Quantity
Price per unit*
10 pcs.
0.1404 €
100 pcs.
0.1095 €
500 pcs.
0.0893 €
1000 pcs.
0.0797 €
2500 pcs.
0.0726 €
*incl. VAT plus shipping costs
**Subject to prior sale
Add to comparison list Print
Description
Technical specifications
Download
Logistics
Compliance
Variations
Description

High-voltage transistors series MPSA.

Package: TO92.

Technical attributes (type, version, collector-emitter voltage, collector current): MPSA92, PNP, –300 V, –500 mA, CDIL
Technical specifications
Version PNP
Enclosure TO-92
max. operating temperature 150 °C
max.voltage between collector and base Vcbo 300 V
max.voltage between collector and emitter Vceo 300 V
min. operating temperature -55 °C
Assembly THT
Rated current 500 mA
Saturation voltage 900 mV
Transit frequency fTmin 50 MHz
Power dissipation 0.625 W
Collector current 500 mA
Min DC gain 25 mA
Show similar products (0)
Logistics
Country of origin IN
Customs tariff number 85412900
Original Packaging Bulk with 1,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
Variations
Version
Saturation voltage
Unit
Power dissipation
Unit
Collector current
Unit
Assembly
min. operating temperature
max. operating temperature
Rated current
Unit
Enclosure
Search results: 1 item in 2 variations
*incl. VAT plus shipping costs
Item description
Total
Price list
Availability
Version
Saturation voltage
Power dissipation
Collector current
Assembly
min. operating temperature
max. operating temperature
Rated current
Enclosure
Bipolar junction transistor, NPN, 500 mA, 300 V, THT, TO-92, MPSA42
Bipolar junction transistor, NPN, 500 mA, 300 V, THT, TO-92, MPSA42
Order No.:
 24S4934
Manufacturer:
 CDIL
Manufacturer SKU:
 MPSA42
Total Price: 0.50 € *
4 pcs.
0.1261 €
100 pcs.
0.0988 €
500 pcs.
0.0809 €
1000 pcs.
0.0714 €
2500 pcs.
0.0666 €
Available: 136 pcs.
Leadtime: 3 Weeks **
NPN
500 mV
0.625 W
500 mA
THT
-55 °C
150 °C
500 mA
TO-92
Bipolar junction transistor, PNP, 500 mA, 300 V, THT, TO-92, MPSA92
Bipolar junction transistor, PNP, 500 mA, 300 V, THT, TO-92, MPSA92
Order No.:
 24S4947
Manufacturer:
 CDIL
Manufacturer SKU:
 MPSA92
Total Price: 1.40 € *
10 pcs.
0.1404 €
100 pcs.
0.1095 €
500 pcs.
0.0893 €
1000 pcs.
0.0797 €
2500 pcs.
0.0726 €
Available: 19 pcs.
Leadtime: 4 Weeks **
PNP
900 mV
0.625 W
500 mA
THT
-55 °C
150 °C
500 mA
TO-92
