2N5416 | CDIL

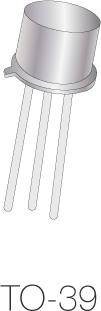

Bipolar junction transistor, PNP, 1 A, 300 V, THT, TO-39, 2N5416
Unit Price (€ / pc.)
1.3328 € *
Available: 498 pcs.
Leadtime: 3 Weeks **
Total Price:
13.33 € *
Price list
Quantity
Price per unit*
10 pcs.
1.3328 €
50 pcs.
1.1781 €
500 pcs.
0.9401 €
1000 pcs.
0.8806 €
2000 pcs.
0.8092 €
*incl. VAT plus shipping costs
**Subject to prior sale
PNP transistor, 2N5416, CDIL
This PNP silicon high voltage transistor is used for high speed switching and linear amplifier appliances in military, industrial and commercial equipment.
Technical specifications
| Version | PNP | |
| Enclosure | TO-39 | |
| max. operating temperature | 200 °C | |
| max.voltage between collector and base Vcbo | 350 V | |
| max.voltage between collector and emitter Vceo | 300 V | |
| min. operating temperature | -65 °C | |
| Assembly | THT | |
| Rated current | 1 A | |
| Saturation voltage | 2 V | |
| Transit frequency fTmin | 15 MHz | |
| Power dissipation | 1 W | |
| Collector current | 1 A | |
| Max DC amplification | 120 mA | |
| Min DC gain | 30 mA |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85412900 |
| Original Packaging | Bulk with 500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
