HSE07201.024 | CAMTEC

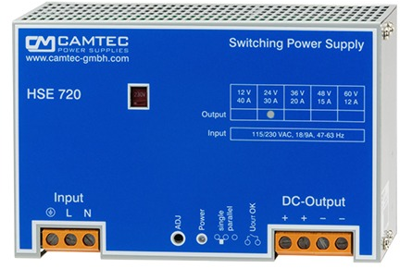

Power supply, 24 VDC, 30 A, 720 W, HSE07201.024
Unit Price (€ / pc.)
510.0102 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
510.01 € *
Price list
Quantity
Price per unit*
1 pcs.
510.0102 €
10 pcs.
459.0068 €
25 pcs.
446.2619 €
*incl. VAT plus shipping costs
**Subject to prior sale
Power supplies, type Camtec HSE.
Single-phase AC/DC power supply for rail mounting, V/I characteristic, convection cooling, sustained short circuit-proof; Input voltage: 115/230 VAC. Input range AC: 90 V to 132 V/184 to 265 V. Input range DC: 250 V to 375 V. Operating temperatures: - 20 to +70 °C.
Output power 720 W, type HSE07201.
MTBF: 350000 h. Backup time (230 VAC): 30 ms. Connection: 6.0 mm² screw terminals. Dimensions: 200 x 130 x 118 mm. Weight: 3.15 kg.
Technical attributes (type, output voltage, output current, residual ripple, efficiency): HSE07201.24T, 24 VDC, 30 A, 50 mV, 90 %
Technical specifications
| Number of outputs | 1 | |
| Output voltage DC | 24 VDC | |
| Output current | 30 A | |
| Width | 200 mm | |
| Input voltage AC | 90-265 VAC | |
| Height | 130 mm | |
| Power | 720 W | |
| Degree of protection (IP) | IP20 | |
| Depth | 118 mm | |
| efficiency | 91 % |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85043180 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
