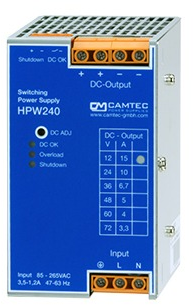

HPW02401.060 | CAMTEC
Power supply, 60 VDC (53 to 72 VDC), 5.2 A, 240 W, HPW02401.060
Unit Price (€ / pc.)
469.6811 € *
Standard delivery time from the manufacturer is: 1 Week
Power supplies 240 W, type Camtec HPW 02401.
Single-phase AC/DC power supply, Low Inrush, for rail mounting, V/I characteristic; Input voltage: 100 to 240 VAC. Input range AC: 85 to 264 V. Input range DC: 90 to 350 V. Backup time: 40 ms. Efficiency: ±91.5%. Operating temperatures: –25 to +70 °C. Dimensions: 75 x 130 x 115 mm.
Technical attributes (type, output voltage, output current, power, residual ripple): HPW02401.60T, 60 VDC, 4.0 A, 50 mV
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of outputs | 1 | |
| Output current | 5.2 A | |
| Output voltage DC | 60 VDC (53 to 72 VDC) | |
| Input voltage AC | 90-264VAC, 90-350VDC | |
| Power | 240 W | |
| efficiency | 91 % | |
| Degree of protection (IP) | IP20 | |
| Width | 75 mm | |
| Height | 130 mm | |
| Depth | 115 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85043180 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
