MP930-200-1% | Caddock

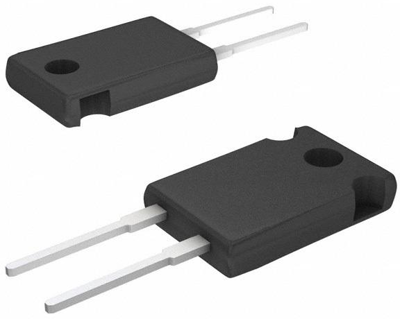

Power metal film resistor, 200 Ω, 30 W, ±1 %, MP930-200-1%

Order No.: 60E656
EAN: 4099879696908
MPN:
MP930-200-1%
Series: MP9
MP930-200-1% Caddock Wirewound Resistors Image 1
MP930-200-1% Caddock Wirewound Resistors Image 2
MP930-200-1% Caddock Wirewound Resistors Image 3
Image may differ
Unit Price (€ / pc.)
5.0694 € *
Available: 50 pcs.
Total Price:
5.07 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0694 €
5 pcs.
4.7005 €
10 pcs.
4.4268 €
25 pcs.
4.1888 €
50 pcs.
3.9865 €
*incl. VAT plus shipping costs
Subject to prior sale

Power metal film resistors, 15 to 100 W, tolerance 1.0 %, TO package, type Caddock MP 915/925/930/9100.

Low inductance, mountable on heatsinks, with heat dissipating ceramic mounting surface

Rated load 30 W, type MP 930.

Technical specifications
Filter Property Value
Assembly THT
Height 16.26 mm
Version power metal film resistor
max. operating temperature 150 °C
Width 3.18 mm
Temperature coefficient -20/80 ppm/K
Power 30 W
min. operating temperature -55 °C
ohmic resistance 200 Ω
Design radial
Tolerance ±1 %
Length 10.41 mm
Logistics
Property Value
Original Packaging Bar with 50 pieces
Country of origin US
Customs tariff number 85332900
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
