MP930-0.20-1% | Caddock

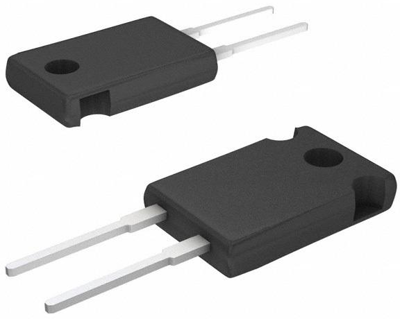

Power metal film resistor, 200 mΩ, 30 W, ±1 %, MP930-0.20-1%
Unit Price (€ / pc.)
8.7941 € *
Available: 48 pcs.
Total Price:
8.79 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7941 €
10 pcs.
7.7350 €
100 pcs.
6.7949 €
200 pcs.
6.5212 €
1000 pcs.
5.9976 €
*incl. VAT plus shipping costs
Subject to prior sale
Power metal film resistors, 15 to 100 W, tolerance 1.0 %, TO package, type Caddock MP 915/925/930/9100.
Low inductance, mountable on heatsinks, with heat dissipating ceramic mounting surface
Rated load 30 W, type MP 930.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | 0/+200 ppm/K | |
| Tolerance | ±1 % | |
| Design | radial | |
| ohmic resistance | 200 mΩ | |
| Power | 30 W | |
| Width | 3.18 mm | |
| Height | 16.26 mm | |
| Assembly | THT | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Version | power metal film resistor | |
| Length | 10.41 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332900 |
| Country of origin | US |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
