T3782D 115 | C.K Tools

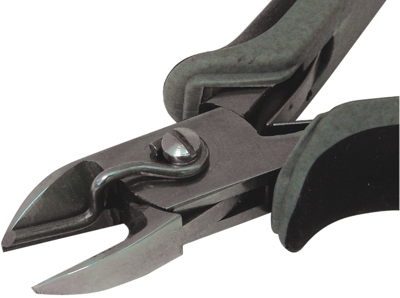

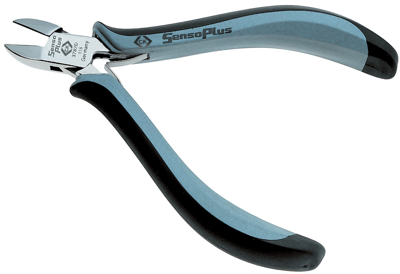

ESD side cutter, 125 mm, 65 g, cut capacity (1.5/1/0.4 mm/–), T3782D 115
Unit Price (€ / pc.)
52.241 € *
Available: 0 pcs.
Available in 14 Days: 30 pcs.
Leadtime: 2 Weeks **
- Special alloy steel, drop forged, hardened & tempered for exceptional strength & durability
- Precision box joint construction for permanent, adjustment free jaw alignment
- Induction hardened jaws for outstanding long term performance
- Mirror polished surface eliminates the risk of damage from flaking chrome
- Spot welded double leaf springs for consistent, repetitive action
- Ergonomically designed dual component handles for increased comfort & control
- Fully ESD compliant for safe use on sensitive electronic components
- According to IEC 61340 5.1 & 5.2
- Oval head, with wire holder
- Bevel: Mini-Bevel
- Length of cutting edges: 13 mm
- Overall length: 125 mm
- Cutting capacities wire: Hard: 0,4 mm / Medium Hard: 1,0 mm / Soft: 1,5 mm
Technical specifications
| Version | side cutter | |
| ESD protection | Yes | |
| Weight | 65 g | |
| Length | 125 mm | |
| Material | special steel | |
| Cutting edge | with facet | |
| Cutting capicity (hard) | 0.4 mm | |
| Cutting capacity (medium-hard) | 1 mm | |
| Cutting capacity (soft) | 1.5 mm | |
| 1000V Insulated | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82032000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
