BYB-3-16H316 | by.B

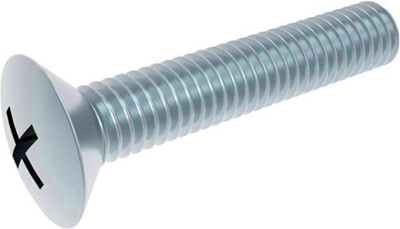

Countersunk head screw, PH cross slot, M5, 12 mm, steel, galvanized, DIN 966/ISO 7047, BYB-3-16H316
Order No.: 16H316
EAN: 4099889500165
MPN:
BYB-3-16H316
Unit Price (€ / pc.)
0.0726 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
0.73 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0726 €
100 pcs.
0.0631 €
1000 pcs.
0.0547 €
5000 pcs.
0.0464 €
10000 pcs.
0.0381 €
*incl. VAT plus shipping costs
Subject to prior sale
Oval countersunk head screws, galvanized steel, to DIN 966/ISO 7047, type BS 2000.
With Phillips cross-recess.
Technical specifications
| Version | countersunk head screw | |
| Standard number | DIN 966/ISO 7047 | |
| Material | steel, galvanized | |
| Head shape | countersunk head | |
| Spindle drive type | PH cross slot | |
| Thread size | M5 | |
| Length | 12 mm |
Download
Logistics
| Country of origin | QU |
| Customs tariff number | 73181558 |
Compliance
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
