BYB-5-92F5950 | by.B

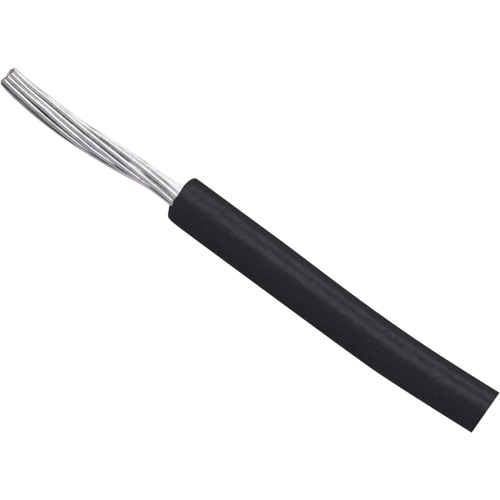

PVC-switching strand, LiYv-HT, 1.0 mm², black, outer Ø 2.5 mm, BYB-5-92F5950
Unit Price (€ / pck.)
49.9800 € *
Available: 0 pck.
Next delivery: 1 pck. on 2025-06-11
Leadtime: 10 Weeks **
Total Price:
49.98 € *
Price list
Quantity
Price per unit*
1 pck.
49.9800 €
5 pck.
47.6000 €
10 pck.
41.4120 €
25 pck.
38.1990 €
50 pck.
34.9860 €
*incl. VAT plus shipping costs
**Subject to prior sale
Heat-resistant stranded hook-up wires, type LiYv-HT.
Tinned stranded copper wire, PVC insulation
Cross-section 1.0 mm², outer diameter 2.5 mm,.
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 2.5 mm | |
| Colour | schwarz | |
| Halogen free | No | |
| Cable structure | 32 x 0,2 mm | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 1,0 mm² | |
| Rated voltage | 600 V | |
| Standard number | VDE 0812 | |
| Test voltage | 2.5 kV | |
| Temperature range (active) | -10 °C bis 105 °C | |
| Temperature range (unmoved) | -30 °C bis 105 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
