BYB-5-92F537 | by.B

Name: PVC-stranded wires kit colors á 5 meter), LiYv, 0.14 mm², 18 x 0.1 mm, outer Ø 1.1 mm, BYB-5-92F537
Brand: by.B
SKU: 92F537
Availability: InStock

PVC-stranded wires kit colors á 5 meter), LiYv, 0.14 mm², 18 x 0.1 mm, outer Ø 1.1 mm, BYB-5-92F537

Order No.: 92F537

EAN: 4099891600433

MPN:

BYB-5-92F537

Series: LiYv

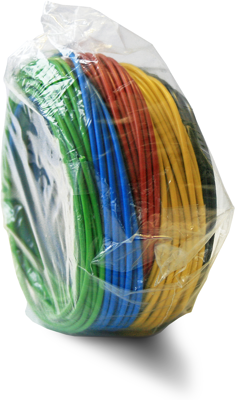

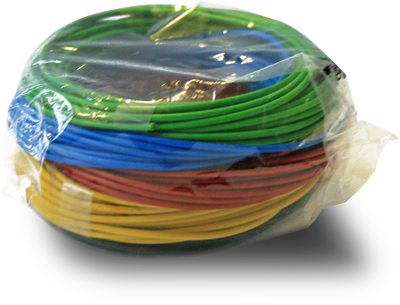

BYB-5-92F537 by.B Insulated stranded wires Image 2

Image may differ

Key Specification:

Cable cross-section 0.14 mm²

Cable structure 18 x 0.1 mm

Core insulation material PVC

Ordering Information:

5-pieces, 5 meters each in the colors black, red, blue, green and yellow / not to be sold to private customers

Show 8 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.6410 € *

Available: 13 pcs.

Total Price:

4.64 € *

Price list

Quantity

Price per unit*

1 pcs.

4.6410 €

5 pcs.

4.2959 €

10 pcs.

3.9508 €

25 pcs.

3.7128 €

50 pcs.

3.4867 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Assortment with PVC stranded wires LiYv, 0,14 mm², 18 x 0,1 mm

5-piece, 5 m each in the colors green, blue, red, yellow and black.

Technical specifications

Filter	Property	Value
	Test voltage	2.5 kV
	Cable cross-section	0.14 mm²
	Outer diameter	1.1 mm
	Temperature range (active)	-30 °C to 70 °C
	Cable structure	18 x 0.1 mm
	Standard number	according to DIN VDE 0812
	Rated voltage	900 V
	Temperature range (unmoved)	-10 °C to 70 °C
	Core insulation material	PVC
	Cable material	copper, tin-plated
