BYB-7-30L0166 | by.B
ESD-flat nose pliers, L 146 mm, 78 g, BYB-7-30L0166
Order No.: 30L0166
EAN: 4099891983734
MPN:
BYB-7-30L0166
Unit Price (€ / pc.)
13.0305 € *
Next delivery: 5 pcs. on 2025-06-30
Total Price:
13.03 € *
Price list
Quantity
Price per unit*
1 pcs.
13.0305 €
5 pcs.
11.7334 €
*incl. VAT plus shipping costs
Subject to prior sale

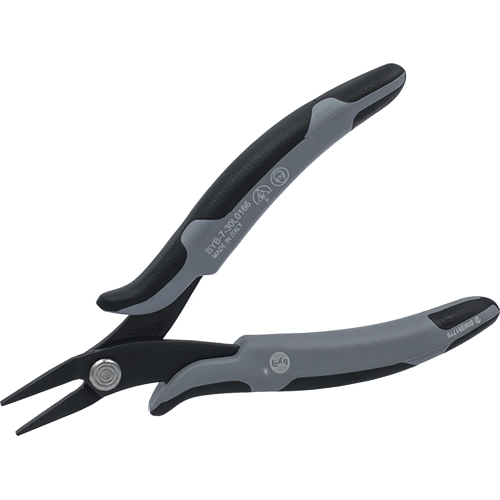

Short flat-nose plier, BYB-7-30L0166, by.B
Flat-nose pliers with short serrated jaws, suitable for gripping any type of components. ESD-safe version. Conform to the ESD-Standard (IEC 61340-5-1). Steel thickness 3 mm. Laser marked.
This plier is equipped with a return spring designed to have a constant force, thus reducing operator eƯort. Made with high carbon steel and undergo a controlled atmosphere heat treatment. The anti-reflection phosphating surface treatment ensures an accurate view of the work being carried out. The anti-slip bi-material dolphin handle is created following ergonomic principles, thus guaranteeing a safe, light and comfortable grip for the operator.
Technical specifications
| Weight | 78 g | |
| 1000V Insulated | No | |
| Version | flat nose pliers | |
| ESD protection | Yes | |
| Length | 146 mm | |
| Jaw lenght | 20 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 82032000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | not_relevant |
| SVHC free | Yes |
