PX0843/A | BULGIN

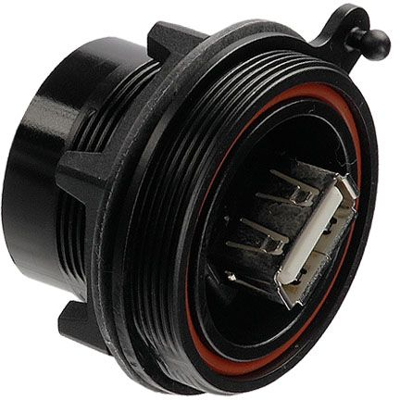

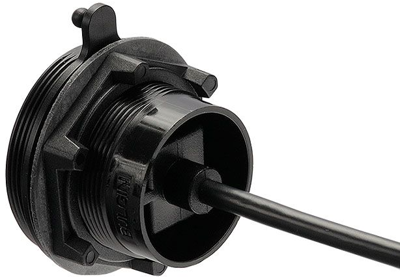

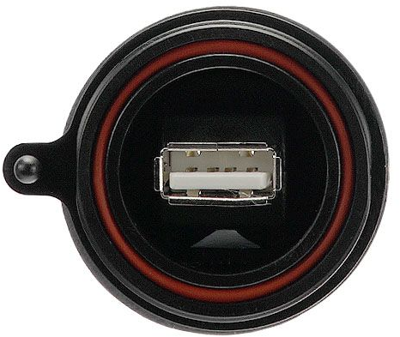

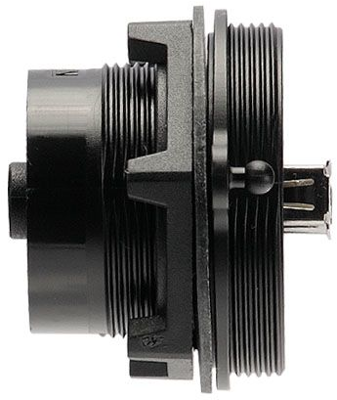

USB-A connector (IP 68), front-panel mounting, approx. 132 mm cable, PX0843/A
Active
Product by BULGIN at Bürklin Elektronik
USB cables, IP 68, type Bulgin PX08.
Contact finish: gold-plated copper. Rated voltage: 30 VAC. Rated current: 1.0 A. Contact resistance: max. 30 mohm. Housing: PA 6.6, UL 94 V-0. Cable: PVC. Degree of protection: IP 68. Operating temperatures: 0 to +70 °C.
USB connectors, IP 68, for front-panel mounting, type PX084.
Technical attributes (type, version, length): PX0843/A, USB-A connectors with approx. 132 mm cable
| Version | A-Plug | |
| Contact connection | solder connection | |
| Assembly | front panel mounting | |
| USB Standard | USB 2.0 |
| Country of origin | TN |
| Customs tariff number | 85366990 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
