DX0505/BL/12 | BULGIN

Signal light, vandal-proof, 12 V (AC), 12 V (DC), blue, 1.6 cd, Mounting Ø 12.1 mm, LED number: 1, DX0505/BL/12

Order No.: 31G8570
EAN: 4099889582550
MPN:
DX0505/BL/12
Series: Indicators

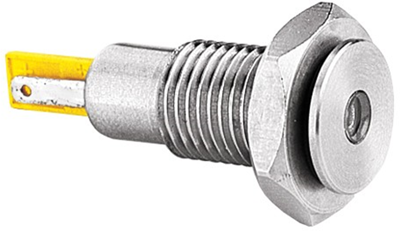

DX0505/BL/12 BULGIN Signal Lamps, Indicators, Arrays Image 1

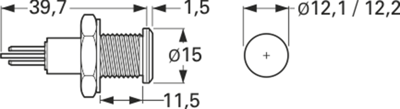

DX0505/BL/12 BULGIN Signal Lamps, Indicators, Arrays Image 2
Image may differ
Unit Price (€ / pc.)
46.2910 € *
Available in 5 Days: 48 pcs. - if ordered today
Total Price:
231.45 € *
Price list
Quantity
Price per unit*
5 pcs.
46.2910 €
13 pcs.
38.9368 €
*incl. VAT plus shipping costs
Subject to prior sale

Vandal resistant LED signal lamps, type Bulgin DX0505.

Flat LED signal lamp, not flush with the panel, with high-quality stainless steel housing; Mounting diameter: 12 mm. Degree of protection: IP 67. Operating temperatures: –40 to +80 °C.

Technical attributes (type, rated voltage, light color, luminous intensity, rated current): DX0505/BL/12, 12 V AC/DC, blue, 1600 mcd, 25 mA

Technical specifications
Filter Property Value
Farbe der Beleuchtung blue
Luminous intensity 1.6 cd
Rated current 25 mA
Rated voltage (AC) 12 V
Version vandal-proof
Connection solder connection/2.8 mm
Assembly screw mounting
Number of LEDs 1
Rated voltage (DC) 12 V
Installation diameter 12.1 mm
Diode Diameter 15 mm
Logistics
Property Value
Customs tariff number 85414100
Country of origin TN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
