PXMBNI12RPF05BPCPG9 | BULGIN

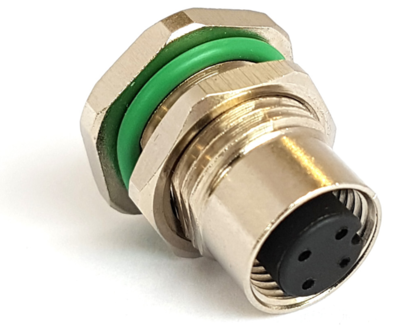

Panel socket, M12, 5 pole, solder pins, screw locking, straight, PXMBNI12RPF05BPCPG9
Unit Price (€ / pc.)
51.5627 € *
Available in 5 Days: 73 pcs. - if ordered today
Total Price:
51.56 € *
Price list
Quantity
Price per unit*
1 pcs.
51.5627 €
5 pcs.
48.8971 €
10 pcs.
45.7436 €
25 pcs.
41.6976 €
*incl. VAT plus shipping costs
Subject to prior sale
Socket, PXMBNI12RPF05BPCPG9, BULGIN
The PXMBNI12RPF05BPCPG9 is a circular connector that is rugged, easy to use and extremely reliable solution for sensor/actuator connectivity in industrial automation and control applications.
Features
- Field installable connector
- B-coded
- High degree of environmental protection - IP67 rated
Applications
- Process control
- Industrial machinery
- Factory automation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | B | |
| Orientation | straight | |
| Contact connection | solder pins | |
| Pin number | 5 pole | |
| Product type | panel socket | |
| Degree of protection (IP) | IP67 | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Assembly | PCB mounting | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
