PXMBNI12RPF03APCM16 | BULGIN

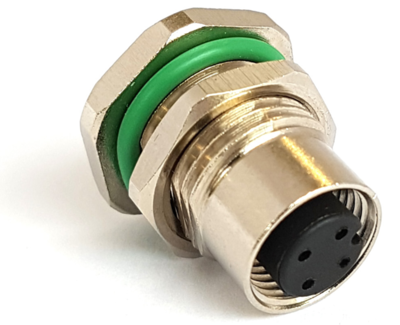

Mounting socket, M12, 3 pole, solder pins, Screw locking, straight, PXMBNI12RPF03APCM16
Images may differ
Unit Price (€ / pc.)
28.1078 € *
Available: 0 pcs.
Available in 5 Days: 204 pcs.
Leadtime: 5 Days **
Add to Cart
Total Price:
28.11 € *
Quantity
Price per unit*
4 pcs.
28.1078 €
19 pcs.
21.9198 €
25 pcs.
18.8258 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Socket, PXMBNI12RPF03APCM16, BULGIN
The PXMBNI12RPF03APCM16 is a circular connector that is rugged, easy to use and extremely reliable solution for sensor/actuator connectivity in industrial automation and control applications.
Features
- Field installable connector
- A-coded
- High degree of environmental protection - IP67 rated
Applications
- Process control
- Industrial machinery
- Factory automation
Technical specifications
| Version | mounting socket | |
| Additional parts | equipped | |
| Thread size | M12 | |
| Coding | A | |
| Contact connection | solder pins | |
| contact surface | gold-plated | |
| Assembly | PCB mounting | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Screw locking |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
