MP0045/1E2BL012 | BULGIN
Vandal-proof pushbutton switch, 2 pole, silver, illuminated (blue), 1 A/110 V, mounting Ø 16.2 mm, IP40, MP0045/1E2BL012
Unit Price (€ / pc.)
33.2367 € *
Available in 5 Days: 553 pcs. - if ordered today
Total Price:
199.42 € *
Price list
Quantity
Price per unit*
6 pcs.
33.2367 €
18 pcs.
28.7028 €
*incl. VAT plus shipping costs
Subject to prior sale
Vandal resistant pushbutton, illuminated, type Bulgin with ring illumination and series resistor
Double-pole CO contact, solder terminals and made of stainless steel
Switching voltage: max. 250 V
Switching current: max. 3.0 A
Contact resistance: max. 50 mohm
Operating temperatures: - 20 to +55 °C
Rated voltage LED: 12 VDC
Contact material: silver-plated brass
Technical attributes (type, profile, LED, switching function): MP0045/1E2BL012, raised, blue, latching
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Protection class | IP40 | |
| Breaking capacity | 1 A/110 V | |
| illuminated | Yes | |
| Latching switching function | latching | |
| contact surface | silver-plated | |
| Printed | No | |
| Vandal-proof | Yes | |
| Pin number | 2 pole | |
| Farbe der Beleuchtung | blue | |

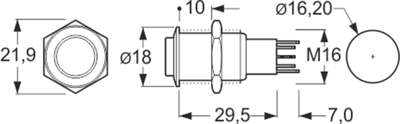

| Installation diameter | 16.2 mm | |
| Design | round | |
| Actuator colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
