MP0045/1E0NN000 | BULGIN
Vandal-proof pushbutton switch, 2 pole, silver, unlit , 3 A/250 V, mounting Ø 16.2 mm, IP40, MP0045/1E0NN000
Unit Price (€ / pc.)
23.0503 € *
Available: 1 pcs.
Available in 5 Days: 1,210 pcs. - if ordered today
Total Price:
23.05 € *
Price list
Quantity
Price per unit*
1 pcs.
23.0503 €
10 pcs.
21.2058 €
50 pcs.
19.5041 €
100 pcs.
17.7548 €
*incl. VAT plus shipping costs
Subject to prior sale

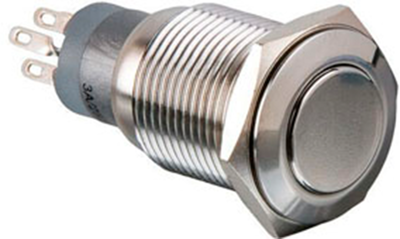

Vandal resistant pushbutton, illuminated, type Bulgin MP0045.
Double-pole CO contact, solder terminals, made of stainless steel; Switching voltage: max. 250 V. Switching current: max. 3,0 A. Contact resistance: max. 50 mohm. Operating temperatures: –20 to +55 °C. Contact material: silver-plated brass.
Not illuminated.
Technical attributes (type, profile, LED, switching function): MP0045/1E0NN000, flush, latching
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breaking capacity | 3 A/250 V | |
| Printed | No | |
| Vandal-proof | Yes | |
| Latching switching function | latching | |
| illuminated | No | |
| Protection class | IP40 | |
| Actuator colour | silver | |
| Pin number | 2 pole | |
| contact surface | silver-plated | |
| Installation diameter | 16.2 mm | |
| Connection | solder connection | |
| Design | round |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365011 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
