MP0045/1D0NN000 | BULGIN

Vandal-proof pushbutton, 2 pole, silver, unlit , 1 A/110 V, mounting Ø 16.2 mm, IP40, MP0045/1D0NN000

Order No.: 12G603
EAN: 4099889193244
MPN:
MP0045/1D0NN000
Series: Switches

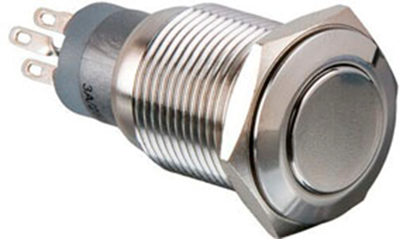

MP0045/1D0NN000 BULGIN Pushbutton Switches Image 1
MP0045/1D0NN000 BULGIN Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
25.2518 € *
Available in 5 Days: 59 pcs. - if ordered today
Total Price:
202.01 € *
Price list
Quantity
Price per unit*
8 pcs.
25.2518 €
23 pcs.
21.8008 €
*incl. VAT plus shipping costs
Subject to prior sale

Vandal resistant pushbutton, illuminated, type Bulgin MP0045.

Double-pole CO contact, solder terminals, made of stainless steel; Switching voltage: max. 250 V. Switching current: max. 3,0 A. Contact resistance: max. 50 mohm. Operating temperatures: –20 to +55 °C. Contact material: silver-plated brass.

Not illuminated.

Technical attributes (type, profile, LED, switching function): MP0045/1D0NN000, flush, momentary

Technical specifications
Filter Property Value
Installation diameter 16.2 mm
Latching switching function groping
Breaking capacity 1 A/110 V
Connection solder connection
Protection class IP40
Design round
Pin number 2 pole
Vandal-proof Yes
contact surface silver-plated
illuminated No
Actuator colour silver
Printed No
Logistics
Property Value
Country of origin CN
Customs tariff number 85365011
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
