PXP6012/22P/CR | BULGIN

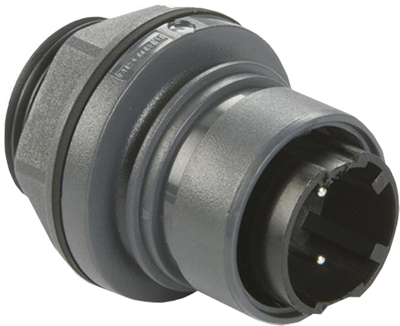

Panel plug, 22 pole, crimp connection, push pull, straight, PXP6012/22P/CR
Unit Price (€ / pc.)
10.6862 € *
Available: 0 pcs.
Available in 5 Days: 124 pcs.
Leadtime: 1 Week **
Total Price:
10.69 € *
Price list
Quantity
Price per unit*
10 pcs.
10.6862 €
30 pcs.
7.5565 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector for harsh environments, series 6000, type Bulgin PXP6.
With push/pull lock and 30° twist lock against unintentional disconnection, water-proof and dust-proof to EN 60529; Degree of protection: IP 68. Insulation resistance: min. 10 Mohm at 500 V AC/DC. Contact resistance: max. 10 mohm. Material: PC/PBT, halogen-free. Inflammability class: UL 94 V-0. Contacts: nickel-plated brass (2 A gold-plated). Seals: silicon. Operating temperatures: - 40 to +120 °C. Cable entry: 4.0 to 10 mm. Certifications: CSA, UL.
Connectors, front panel mount, male contacts, for PXP6010, type PXP6012.
Technical attributes (type, number of poles, rated voltage/current, connections): PXP6012/22P/CR, 22-pole, 60 V AC/DC/2.0 A, crimp terminals
Technical specifications
| Version | flange plug | |
| Additional parts | unequipped | |
| Shell Material | PBT | |
| Contact connection | crimp connection | |
| Assembly | PCB mounting | |
| Orientation | straight | |
| Pin number | 22 pole | |
| Type of locking | push pull |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
