PXP6012/03P/ST | BULGIN

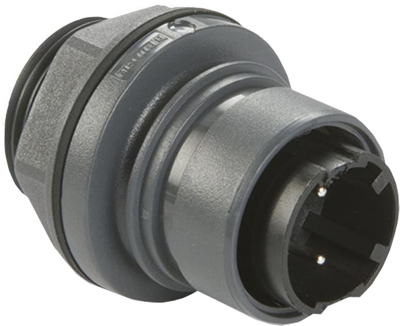

Panel plug, 3 pole, screw connection, push pull, straight, PXP6012/03P/ST
Unit Price (€ / pc.)
18.9567 € *
Available in 5 Days: 63 pcs. - if ordered today
Total Price:
208.52 € *
Price list
Quantity
Price per unit*
11 pcs.
18.9567 €
35 pcs.
16.3625 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector for harsh environments, series 6000, type Bulgin PXP6.
With push/pull lock and 30° twist lock against unintentional disconnection, water-proof and dust-proof to EN 60529; Degree of protection: IP 68. Insulation resistance: min. 10 Mohm at 500 V AC/DC. Contact resistance: max. 10 mohm. Material: PC/PBT, halogen-free. Inflammability class: UL 94 V-0. Contacts: nickel-plated brass (2 A gold-plated). Seals: silicon. Operating temperatures: - 40 to +120 °C. Cable entry: 4.0 to 10 mm. Certifications: CSA, UL.
Connectors, front panel mount, male contacts, for PXP6010, type PXP6012.
Type: PXP6012/03P/ST, 3-pole, 277 V AC/DC/12 A, screw terminals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | screw connection | |
| contact surface | nickel-plated | |
| Assembly | PCB mounting | |
| Shell Material | PBT | |
| Additional parts | equipped | |
| Orientation | straight | |
| Pin number | 3 pole | |
| Version | flange plug | |
| Type of locking | push pull | |
| Cable cross-section | 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
